Dell 7000 Series Zero Client for VMware
High-Performance Zero Clients for VMware Horizon View

Overview:

For virtual desktop or blade PC environments, the Wyse 7000 series P25 and 7000 series P45™ zero clients for VMware deliver workstation-level performance. These dedicated hardware PCoIP engines deliver the highest level of display performance available for advanced applications, including CAD, 3D solids modeling, video editing and more.

Dell offers multiple Wyse zero clients for VMware Horizon View, all of which feature PCoIP protocol processing in hardware to help ensure an outstanding user experience regardless of application mix, location, or role. And as true zero clients, these devices require zero configuration and management, and offer zero attack surface for viruses and malware.

Extremely compact and energy efficient, the 2-display Wyse 7000 series P25 and 4-display 7000 series P45™ are fully functional VMware View end points that deliver a true PC-like experience. Both devices offer the full benefits of an efficient and secure centralized computing environment, like multiple display support, multimedia playback, HD audio and four USB peripheral ports.

Wyse 5020-P25 High performance, compact design, dual HD displays, and flexible networking options. Compact, strong, and flexible. Uses the latest Teradici PCoIP processor and client-side caching for outstanding performance. Choose Wyse 5020-P25 when you need a zero client for: A wide variety of applications that require excellent performance and brilliant graphics Extremely efficient operation and very low energy usage (under 9 watts) Placement flexibility given its very small size.

Wyse 7020-P45 A true powerhouse with high performance. Quad HD displays and flexible networking options. Serious power for the serious power user. Also uses the latest Teradici PCoIP processor and client-side caching for outstanding performance. Choose Wyse 7020-P45 when you need a zero client for: Users running demanding multimedia or graphics applications like multiple simultaneous HD content feeds, 3D solids modelling, or geophysical simulation Users requiring up to four HD displays (e.g. securities trading, surveillance, video production) with high energy efficiency (under 15 watts).

VMware Horizon View desktop performance when and where it's needed most.

Outstanding performance is the hallmark of the Wyse P class zero client family. Using the latest Tera 2 PCoIP processor from Teradici coupled with client-side caching to optimize available network bandwidth, these zero clients can offer serious power to the serious power user. For HD multimedia, CAD/ CAM, 3D solids modeling, and multidimensional simulation, the Wyse 5020- P25 and 7020-P45 are more than up to the task.

For the end user, the proof is in what they see on their displays, and with the 5020-P25 that means up to two HD displays to showcase brilliant graphics. The even more powerful 7020-P45 can fill up to 4 displays with full HD content for those users running high-end graphics and multimedia applications. In either case, your end users get all the performance they need while life becomes much easier for your IT staff.

Advanced performance. Higher quality.

The Wyse 7000 series P25 and 7000 series P45 allow you to centrally manage your virtual desktops in a data center while still providing rich multimedia, high-resolution 3D graphics, HD media, and full USB peripheral interoperability locally over a LAN – or remotely,-over a WAN. Optimized compression algorithms operate in real-time to achieve the best possible image quality for the available network bandwidth.

Cool, simple performance.

The Wyse 7000 series P25 and 7000 series P45 draw under 8 and 15.5 watts of power, respectively – creating cooler, quieter working environments. Each of these zero clients for VMware Horizon View receive and decode signals from the PCoIP host to create standard PC interfaces for the display, USB peripherals and audio.

Features:

Wyse P class zero clients are designed to bring out the best at every VMware desktop, while being kind to your budget.

Performance

VMware Horizon View desktop performance when and where it's needed most.
Outstanding performance is the hallmark of the Wyse P class zero client family. Using the latest Tera 2 PCoIP processor from Teradici coupled with client-side caching to optimize available network bandwidth, these zero clients can offer serious power to the serious power user. For HD multimedia, CAD/CAM, 3D solids modeling, and multidimensional simulation, the Dell Wyse 5020-P25 and 7020-P45 are more than up to the task.

For the end user, the proof is in what they see on their displays, and with the 5020-P25 that means up to two HD displays to showcase brilliant graphics. The even more powerful 7020-P45 can fill up to 4 displays with full HD content for those users running high-end graphics and multimedia applications. In either case, your people can get all the performance they need while life becomes much easier for your IT staff.

Powerful and Efficient

That's Dell Wyse EarthSmart computing
Through our EarthSmart Computing initiative we are committed to helping organizations implement an energy efficient computing strategy – one that delivers an efficient and productive computing experience for your users with a positive effect on energy wastage, heat and carbon emissions.

Green power
With the 5020-P25 and 7020-P45 drawing less than 9 and 15 watts respectively helping ensure you meet your environmental commitments on heat emissions, carbon consumption is now achievable.

While your work place environments are transformed into quiet, more secure and quite literally - cool places - to help your people perform at their best.

Specifications Comparison:

Legend: S — Standard, OA — Option Available, N — Not Available

	5020-P25	7020-P45
Performance
Processor	Teradici TERA2321 PCoIP™	Teradici TERA2321 PCoIP™
Memory	32MB Flash / 512MB RAM DDR3	32MB Flash / 512MB RAM DDR3
Power	Worldwide auto-sensing 100–240 VAC, 50/60Hz power supply, Multifunction power button LED	Worldwide auto-sensing 100–240 VAC, 50/60Hz. power supply, Multifunction power button LED
Power consumption	Less than 9 watts	Less than 15 watts
Security	Built-in Kensington security slot (cable sold separately)	Built-in Kensington security slot (cable sold separately)
Certifications
Certifications (Based on US ratings)	VMware Ready, PCoIP Connected	VMware Ready, PCoIP Connected

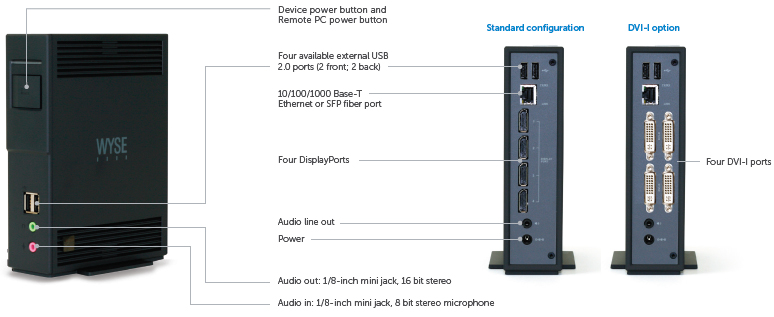

I/O Peripheral Support
DisplayPort	S	Four
DVI-I port (1 VGA adapter included)	S	N/A
Four External USB 2.0 ports (2 front, 2 back)	S	S
Optional DisplayPort to DVI (adapter sold separately)	AO	N/A
Optional multiple DVI ports	N/A	Optional four DVI ports mutually exclusive with four DisplayPorts
Networking
10/100/1000 Gigabit Ethernet	S	S
Optional Fiber SFP Module Ready (Mutually Exclusive with RJ45, Ethernet not included)	AO	AO
Display
VESA monitor support with Display Data Control (DDC) for automatic setting of resolution and refresh rate	S	S
One display	2560 x 1600@60Hz, Color Depth: 8, 15, 16 or 24bpp	2560 x 1600@60Hz, Color Depth: 8, 15, 16 or 24bpp
Two displays	1920 x 1200@60Hz, Color Depth: 8, 15, 16 or 24bpp	2560 x 1600@60Hz, Color Depth: 8, 15, 16 or 24bpp
Four displays	N/A	1920 x 1200@60Hz, Color Depth: 8, 15, 16 or 24bpp
Audio
Composite Audio 1/8-inch mini jack	S	N/A
Audio In 1/8-inch mini jack, 8-bit microphone	N/A	S
Output: 1/8-inch mini jack, full 16-bit stereo, 48KHz sample rate	S	S
One Line out / speaker 1/8-inch mini jack	N/A	S
	5020-P25	7020-P45
Dimensions
Height x Width x Depth	29 mm x 177 mm x 116 mm (1.14 in x 6.97 in x 4.57 in)	177 mm x 46 mm x 130 mm (6.97 in x 1.81 in x 5.12 in)
Weight	0.48kg (1.06lb)	0.765kg (1.67lb)
Mountings
Vertical Feet	S	N/A
Horizontal Feet	AO	S
Wall mounting bracket	N/A	N/A
Temperature Range
Operating	10° to 40° C (50° to 104° F)	N/A
Vertical position, power button up	10° to 40° C (50° to 104° F)	10° to 40° C (50° to 104° F)
Storage	-10° to 60° C (14° to 140° F)	-10° to 60° C (14° to 140° F)
Humidity
Condensing	20% to 80% condensing
Non-condensing	10% to 95% noncondensing
Keyboard and mouse
Enhanced USB keyboard with Windows Keys (104 keys) and PS/2 mouse port included in the U.S. and sold separately outside the U.S.	S	S
PS/2 or USB optical mouse are also available and sold separately (availability varies by region).	S	S
Warranty
3-year limited hardware warranty	S	S

Documentation:

Download the Dell Wyse P class IA Thin Clients Datasheet (PDF).
