Dell EMC SD-WAN Edge 600 Series
All-in-One Solution for SD-WAN Transformation

Dell Edge 600
Dell Products

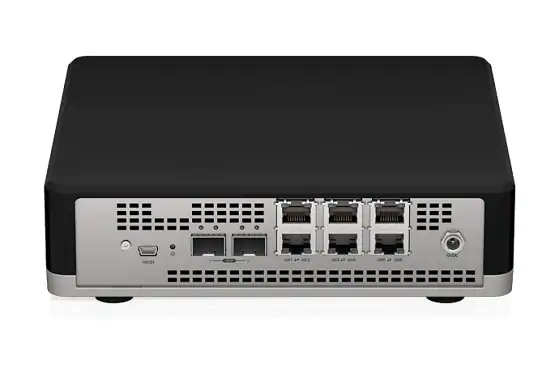

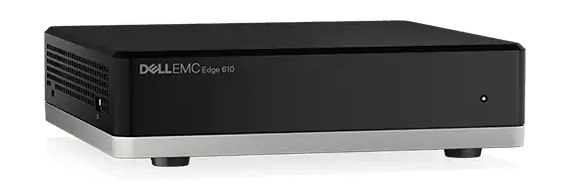

Dell EMC SD-WAN Edge 610
#EDGE-610
Contact us for pricing!
Dell EMC SD-WAN Edge 620
#EDGE-620
Contact us for pricing!
Dell EMC SD-WAN Edge 640
#EDGE-640
Contact us for pricing!
Dell EMC SD-WAN Edge 680
#EDGE-680
Contact us for pricing!

Click here to jump to more pricing!

Overview:

Dell EMC and VMware combined in one simple and powerful SD-WAN solution

With simplicity, efficiency, and a full range of flexible support, services and global supply chain options, Dell EMC SD-WAN Solution delivers a powerful, all-in-one solution that enables you to transform your network for the Cloud era.

SD-WAN provides transformational benefits, enabling you to adapt to change and improve availability, all while saving time and money. With features like Dynamic Multi-Path Optimization, you can achieve up to a 75% reduction in costs** over traditional MPLS-backed WAN designs, and gain better performance for your modern business applications.

*Gartner, Magic Quadrant for WAN Edge Infrastructure, 26 November 2019, Jonathan Forest, Mike Toussaint, Neil Rickard. Gartner does not endorse any vendor, product or service depicted in its research publications, and does not advise technology users to select only those vendors with the highest ratings or other designation. Gartner research publications consist of the opinions of Gartner’s research organization and should not be construed as statements of fact. Gartner disclaims all warranties, express or implied, with respect to this research, including any warranties of merchantability or fitness for a particular purpose. **75% cost saving based on internal VMware calculation of private MPLS at $1,800/month converted to a SDWAN dual broadband configuration cost of ~$200 per month. Actual savings will vary depending on specific configurations and broadband rates.
Dell

Dell

Transform Networking for your Modern Applications

Dell EMC SD-WAN Solution powered by VMware delivers advanced Cloud-based capabilities and saves time, money, and resources.

  • Adapt to Change – Purpose-built networking appliances with Intel processors that are easy to rapidly deploy, configure, and dynamically control
  • Improve Availability – Run mission-critical workloads with confidence without worrying about otherwise unreliable network connections
  • Save Money – Make operations more consistent, leverage commodity broadband connections, and centralize networking management

Specifications:

SD-WAN Edge 610 SD-WAN Edge 620 SD-WAN Edge 640 SD-WAN Edge 680
CPU Denverton 2 Core Denverton 4 Core Denverton 8 Core Denverton 16 Core
Drive 16G eMMC Flash M.2 120 SSD with 16G eMMC Flash M.2 240 SSD with 16G eMMC Flash M.2 240 SSD with 16G eMMC Flash
RAM 4G 8G 32G 32G
Ports (6 x 1G) + (2 x 1G SFP) (6 x 1G) + (2 x 10G SFP+) (6 x 1G) + (2 x 10G SFP+) (6 x 1G) + (2 x 10G SFP+)
Fan None 1 2 2
WiFi & Bluetooth 802.11b/g/n/ac, 2x2 MIMO, 2.4/5 GHz, Bluetooth 802.11b/g/n/ac, 2x2 MIMO, 2.4/5 GHz, Bluetooth 802.11b/g/n/ac, 2x2 MIMO, 2.4/5 GHz, Bluetooth 802.11b/g/n/ac, 2x2 MIMO, 2.4/5 GHz, Bluetooth
Max Recommend Subscription 350 Mbps 750 Mbps 1 Gbps 2 Gbps
Max throughput (1300 bytes) 350 Mbps 1.5 Gbps 3 Gbps 6 Gbps
Maximum Tunnel Scale 50 100 400 800
Max Flows per second 2400 4800 19200 19200
Maximum concurrent flows 240K 480K 1.9M 1.9M
Maximum routes 100K 100K 100K 100K
Maximum segments 16 16 16 16
3rd party VNF support No Yes Yes Yes
Max. throughput with FW VNF N/A 100 Mbps 350 Mbps 500 Mbps

Documentation:

Download the Dell EMC SD-WAN Edge 600 Series Datasheet (PDF).
