Dell Edge Gateway 5200
Access the full potential of your edgegenerated data
Intel Processor-Based Intelligent Edge Gateways
The new intelligent Dell Edge Gateways help companies connect OT/IT environments and extract value from their edge-generated data with no interruptions to their infrastructure. The EGW-5200 enable customers to collect, consolidate, and perform lightweight analyses on the vast data generated from multiple edge devices. With a rugged and fanless design, the edge gateways are compact and robust enough to endure 24/7/365 operations. They are engineered as modular designs with certified and qualified peripherals. These long-life platforms provide OEM-ready and customizable options to best fit a range of industrial needs. They are purpose-built to power real-time insights that will lead to better efficiency, lower costs, and greater performance for your business.
Actionable insights where you need them
Dell Edge Gateways bridge your legacy systems and modern sensors to the internet, enabling you to faster collect and process data at the edge, reducing response time and saving bandwidth. The latest Intel SoC processors provide you with the speed and power to run intensive workloads, especially when combined with applications that enhance automated data curation and analytics capabilities, helping you to extract actionable insights that will be valuable to your business. The new edge gateways enable you to process what is important locally, where and when speed matters.
Uninterrupted performance anywhere, anytime
Ensure that your operations and productivity keep running to boost real-time performance. Engineered with an industrialgrade form factor, these gateways can be used in multiple circumstances without compromising on energy consumption. They offer several features for reducing power usage, helping you save on your operations.
- Intel Atom and Core processors
- SO-DIMM for DDR4 memory
- Rich I/O: DP++, DVI, VGA, GbE, COM, USB, DI/O
- Security: TPM2.0
- Rich storage: 2.5" SATA / M.2
- Embedded expansion: Mini PCIe/uFM/M.2/USIM
- Dual DC input options: DC terminal block or PoE PD
- Win10 LTSC 2019
- Linux Ubuntu 20.04 LTS
Optional Accessories – Qualified and Certified
- Expansion modules (mPCIe or uFM) for Isolated COM (RS-232 or RS-422/485), GbE with PoE, GbE LAN, Canbus
- 4G and 5G modules
- AC-to-DC adapter
Data to insights—anywhere, anytime
Dell Edge Gateway 5200 collects data directly from edge endpoints and can process it locally, allowing you to anticipate and respond at speeds that boost efficiency and improve business systems.

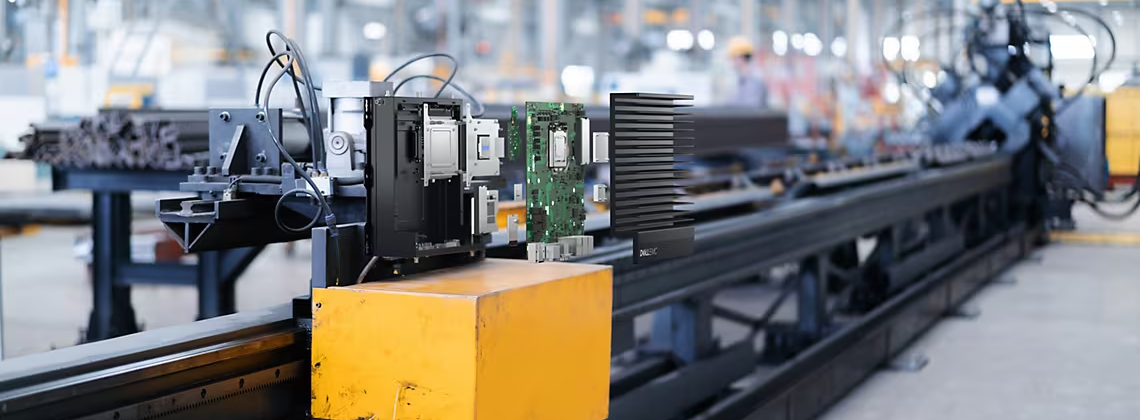

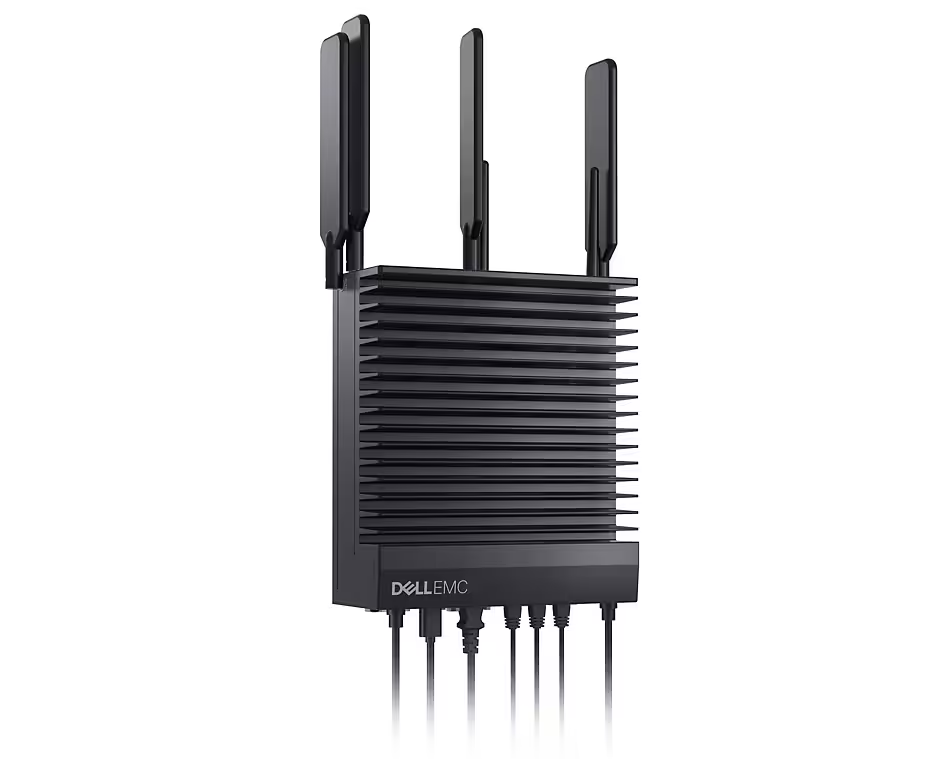

Protected by a rugged exterior for top tier performance.

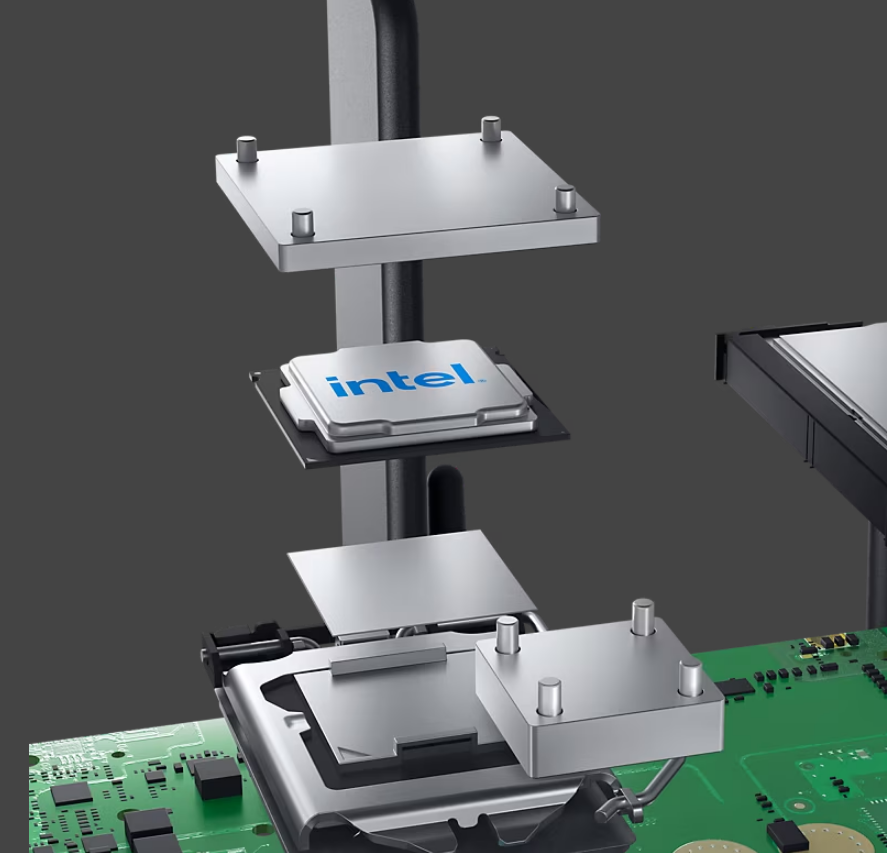

With a 9th Gen Intel Core processor, SSD drive compatibility, compact fanless design and superior connectivity with Wifi-6e and Bluetooth 5.2, the Dell Edge Gateway 5200 is an on-site powerhouse, working to keep things running smoothly even in harsh environments.
Built for extended exposure to the elements, Dell Edge Gateway 5200 is tested for MIL-810G standards and withstands temps ranging from 0°C to 60°C and clocks in for 24/07/365 duty cycles.
Big power, compact case that fits the dimensions and conditions of your plant.
Here to back you, the new Dell Edge Gateway 5200 comes with Basic Hardware Support and ProSupport throughout the extensive product lifecycle.
Productivity wherever, whenever with always-ready deployment.
Connectivity to fit your expansive network
Adaptable processing, with wired and wireless industrial I/O.
All-around compatibility, including a wide range of sensor networks, control systems and industry-standard protocols.
Edge to cloud and back again with optimized infrastructure that backs your data.
Fits your needs with off-the-shelf, pre-configured, pre-certified, ready-to-use products, no matter your industry or location.
Provides uniformity across your system with Dell Technologies' robust end-to-end portfolio.
Far-reaching privacy with Dell's broad IT security that leverages cyber-resilient security.
Superior connectivity with default Wifi-6e, Bluetooth 5.2, 3X 1GB Ethernet ports and optional 4G/5G.
Machine control & reliability
Asset monitoring & management
Intelligent video surveillance
|Processor||Intel Atom x6425RE||Intel Core i7-9700 / i5-9500 / i3-9100 TE|
|TDP||12 W||35 W|
|# of Cores||4||8 / 6 / 4|
|Base Freq.||1.9 GHz||1.8 GHz / 2.2 GHz / 2.2 GHz|
|Max. Turbo Freq.||—||3.8 GHz / 3.6 GHz / 3.2 GHz|
|PCH||Elkhart Lake SoC||C246|
|Memory||SO-DIMM for DDR4 3200 MHz, up to 32 GB||2x DDR4 SO-DIMMs, up to 64 GB|
|Display||2x DP++||2x DP++, DVI-D, VGA|
|Ethernet||1x 2.5 GbE, 1x GbE (1 GHz)||3x Intel GbE: 2x i210 + i219LM PHY, iAMT supported on i5 and i7 CPUs|
|Serial Ports||COM1/2: RS-232/422/485||COM1/2: RS-232/422/485, COM3/4: RS-232|
|DI/O||6-ch DI and 6-ch DO||8-ch DI and 8-ch DO|
|USB||4x external USB 3.1 Gen1||6x external USB ports (2x USB 3.1 Gen2 + 1x USB 3.1 Gen1 + 3x USB 2.0), 1x internal USB 2.0 port|
|Audio||Line-out, mic-in||Line-out, mic-in|
|Mini PCIe||1x full size 3050||1x full size (USB 2.0+PCIe), used for WiFi by default|
|M.2||Socket 1: for module with A/A+E key
Socket 2: for module with B/B+M key
Socket 3: for module with M key
|1x socket 2, key B+M or B
1x 2280/3042 (USB 3.1 + SATA 6 Gb/s + 2x PCIe)
|Sensor Suite||Accelerometer, humidity, pressure, temperature||—|
|Wafer||1x (signal: 2x I2C, 1x USB 2.0)||—|
|USIM||2x nanoSIM slot||2x nanoSIM slot|
|Disk||1x M.2 SSD on M.2 Socket 3||2x internal 2.5” SATA|
|Dimensions||162 mm (W) x 108 mm (D) x 60 mm (H)||211 mm (W) x 240 mm (D) x 86 mm (H)|
|Weight||Net: 1.2 kg; gross: 1.7 kg||4.7 kg|
|Mounting||Wall mount / DIN rail supported||Desktop, operational: wall mount|
|DC Input||9–36 V (±10% tolerance)||12–24 V (±10% tolerance)|
|AC Input||Optional: 120 W, 60 W (for PoE) AC-to-DC adapter||Optional: 180 W, 60 W (for PoE) AC-to-DC adapter|
|Operating temperature||–20°C to 60°C (with airflow 0.6 m/s)||0°C to 60°C (with airflow 0.6 m/s)|
|Storage temperature||–40°C to 85°C (excluding storage devices)||–40°C to 85°C (excluding storage devices)|
|Altitude||Operational (maximum, unpressurized): –15.20 m to 5,000 m
Note: The maximum temperature is derated 1⁰C/305 m above sea level altitude
|Humidity||~95% at 40°C (non-condensing)|
|Vibration||MIL-STD-810G METHOD 514.6 category 4 - common carrier (US highway truck vibration exposure)|
|Shock||1. IEC 60068-2-27, half-sine pulse test parameters
2. 20G, MIL-STD-810G METHOD 516.6 Table 516.6-II, sawtooth pulse test parameters
|EMC||CE, FCC, and EN61000-6-4/-6-2||CE, FCC, and ICES|
|Safety||UL, CB by UL||IEC/EN/UL/CSA 63268-1|

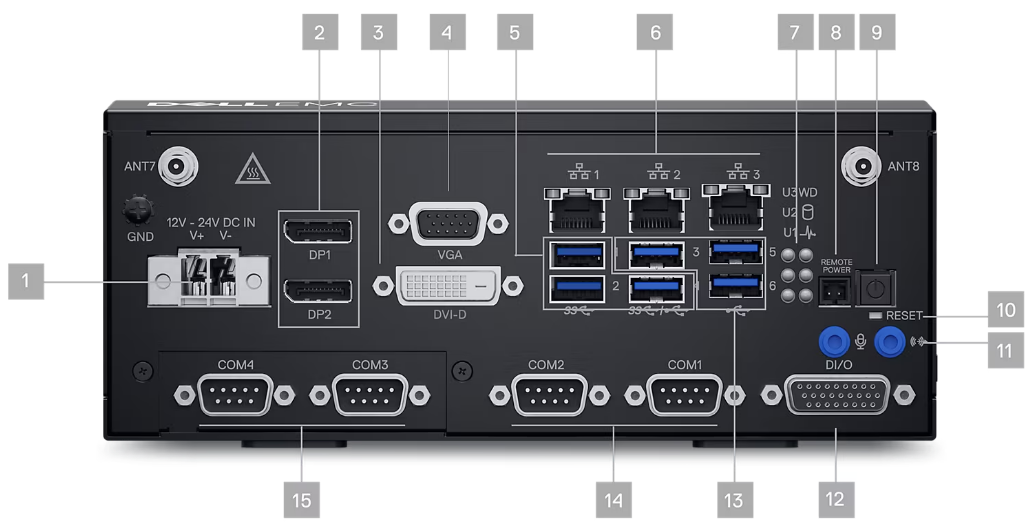

Ports & Slots
1. DC Power Input
2. (2) Display Port
5. (3) USB 3.1 Type A
6. (3) Gigabit Ethernet
7. LED Indicators
8. Extend Power Button
9. Power Button
10. Reset Button
11. (2) Audio (mic, phones/speaker)
12. Digital Input/Output
13. (3) USB 2.0 Type-A
14. (2) COM ports (232/485 capable)
15. (2) FM I/O

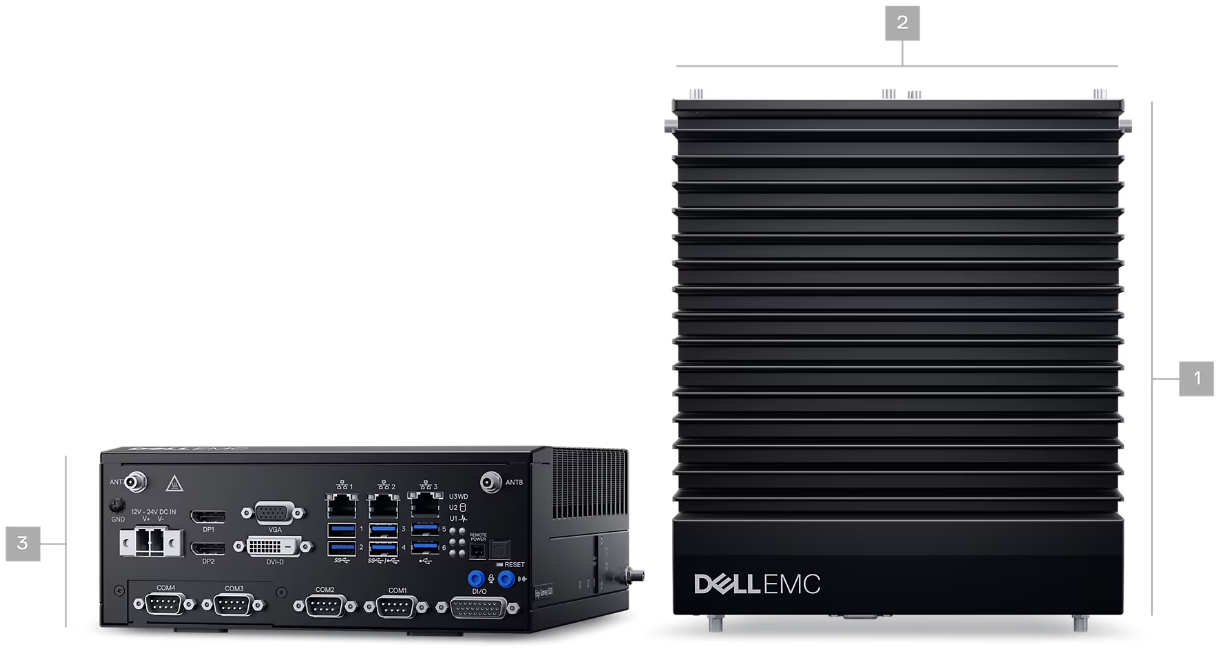

Dimensions & Weight
1. Height: 3.39" (86 mm)
2. Width: 8.27" (211 mm)
3. Depth: 9.45" (240 mm)
Starting Weight: 10.36 lbs. (4.70 kg)
Download the Dell Edge Gateway 3200 and 5200 Datasheet (PDF).
