Dell EMC SD-WAN Edge 500 Series
All-in-One Solution for SD-WAN, now with built-in LTE

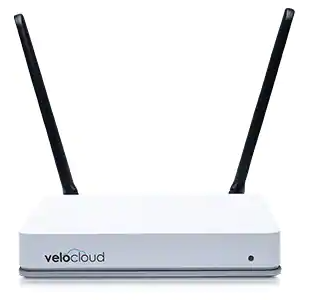

Dell Edge 500
Dell Products

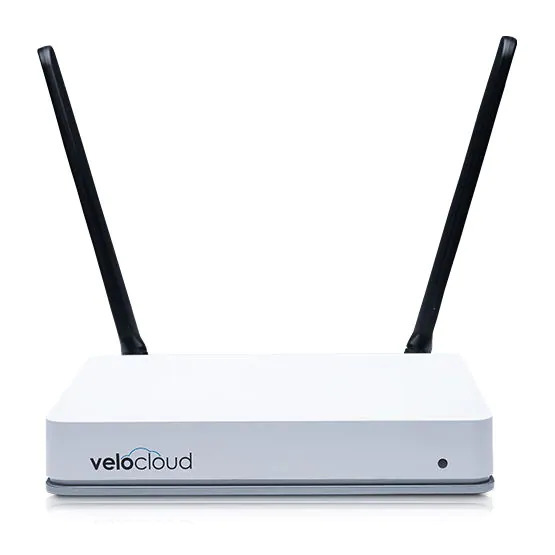

Dell EMC SD-WAN Edge 510 LTE
Contact us for pricing!

Click here to jump to more pricing!


Dell EMC and VMware combined in one simple and powerful SD-WAN solution

Dell EMC SD-WAN Solution powered by VMware combines purpose-built networking appliances from Dell EMC with SD-WAN software from VMware in an all-in-one solution for complete WAN modernization.

VMware has been named a leader by Gartner in the Magic Quadrant for WAN Edge Infrastructure.

With simplicity, efficiency, and a full range of flexible support, services and global supply chain options, the SD-WAN Edge 500 series delivers a powerful, compact all-in-one solution that enables you to transform your network for the Cloud era. It includes VMware SD-WAN software, centralized orchestration and global gateways as part of the Dell EMC SD-WAN Solution powered by VMware.

SD-WAN provides transformational benefits, enabling you to adapt to change and improve availability, all while saving time and money. With features like Dynamic Multi-Path Optimization, you can achieve up to a 75% reduction in costs* over traditional MPLS-backed WAN designs, and gain better performance for your modern business applications.



Transform Networking for your Modern Applications

  • Adapt to Change – Purpose-built networking appliances with Intel processors that are easy to rapidly deploy, configure, and dynamically control
  • Improve Availability – Run mission-critical workloads with confidence without worrying about otherwise unreliable network connections
  • Save Money – Make operations more consistent, leverage commodity broadband connections, and centralize networking management



200 Mbps


100 VAC–240 VAC, 50/60 Hz, Typical consumption 15W, Max 40W


4 1G RJ-45 ports
2 USB 2.0 ports

Power and Cooling Hardware


Dimensions & Weight

Width: 8.1” (20.8cm), Depth: 7.1” (1.8cm), Height: 1.57” (4cm)


RADIUS, local authentication and authorization, multitenant 3 Tier role-based access control (RBAC) architecture, auditing, roles and privileges


OSPF, BGP, static, connected


CE (Europe)
R-Mark (Japan)
SRRC (China)13
EN32032 (HK)
KCC (Korea)
NCC (Taiwan)
47 CFR, Part 15
ICES-003 Class A
EN 55022 Class A
CISPR 22 Class A
AS/NZS 3548 Class A
CNS 13438
EN 300-386
EN 61000 (Immunity)
EN 55024
EN 50082-1]


Remote management using a cloud based orchestrator

Ethernet Support

4 1G RJ-45 ports


802.1Q, 802.1ad, QinQ (0x8100), QinQ (0x9100), native

Quality of Service

Shaping, policing, per-flow queueing, tunnel shaper, multi-source inbound QoS, rate-limiter, COS aware, outer/inner DSCP tagging, smart defaults, MPLS COS

Other Switching



Operating relative humidity 5% to 85% (RH), non-condensing continuously

Environmental Operating Conditions

Operating Temperature 0°C to 40°C (32°F to 104°F)


Download the Dell EMC SD-WAN Edge 500 Series Datasheet (PDF).
