Dell PowerSwitch Data Center Switches

Networking solutions help optimize your data center based on an open ecosystem where organizations can pick from innovative, industry-standard network applications, OS and hardware.

Dell PowerSwitch S Series 1GbE Switches

1GbE ToR switches designed for reliable server/storage aggregation in the rack and cost-effective deployment.

A family of low-end switches with superb performance and low latency
Achieve more agility, more choices and lower costs

Dell PowerSwitch S3124

24 RJ45 10/100/1000Mb auto-sensing ports
Two integrated 10GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap expansion module bay
One hot-swap power supply (200W AC)
Dual hot-swap power supply bays (optional power supply available)

Dell PowerSwitch S3124F

24 SFP 1000Mb auto-sensing ports
Two integrated 10GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap expansion module bay
One hot-swap power supply (200W AC)
Dual hot-swap power supply bays (optional power supply available)

Dell PowerSwitch S3124P

24 RJ45 10/100/1000Mb auto-sensing PoE+ ports
Two integrated 10GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap expansion module bay
One hot-swap power supply (715W AC)
Dual hot-swap power supply bays (optional power supply available)

Dell PowerSwitch S3048-ON

48 x 1000BASE-T ports
4 x 10GbE SFP+ ports
One RJ45 console/management port with RS232 signaling
I/O panel to PSU airflow or PSU to I/O panel airflow for hot/cold aisle environments

Dell PowerSwitch S3148

48 RJ45 10/100/1000Mb auto-sensing ports
Two integrated 10GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap expansion module bay
One hot-swap power supply (200W AC)
Dual hot-swap power supply bays (optional power supply available)

Dell PowerSwitch S3148P

48 RJ45 10/100/1000Mb auto-sensing PoE+ ports
Two integrated 10GbE SFP+ ports
Two GbE combo media ports for copper or fiber flexibility
Two dedicated rear stacking ports
One hot-swap expansion module bay
One hot-swap power supply (1100W AC)
Dual hot-swap power supply bays (optional power supply available)

Dell PowerSwitch S Series 10GbE Switches

10GbE ToR switches designed for flexibility and high performance for today’s demanding workloads and applications.

A family of mid-range switches that enable you to find the ideal solution for your specific data center in-rack needs
Delivers low latency, superb performance and high density

Dell PowerSwitch S4112F-ON

12 x 10GbE ports
3 x 100GbE ports (or 12 x 10GbE and 12 x 25GbE ports in breakout mode)
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S4112T-ON

12 x 10GBase-T ports
3 x 100GbE ports (or 12 x 10GBase-T and 12 x 25GbE ports in breakout mode)
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S4128F-ON

28 x 10GbE SFP+ ports
2 x 100GbE QSFP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S4128T-ON

28 x 10GBase-T ports
2 x 40GbE QSFP+ ports
2 x 100GbE QFSP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S4148F-ON

48 x 10GbE SFP+ ports
2 x 40GbE QSFP+ ports
4 x 100GbE QSFP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S4148T-ON

48 x 10GBase-T ports
2 x 40GbE QFSP+ ports
4 x 100GbE QFSP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S Series 25+GbE Switches

10/25/40/50/100/200/400GbE ToR or core/aggregation switches built for building high-capacity network fabrics that are easy to deploy, cost-effective and provide a clear path to a software-defined data center.

A family of high-performance, high-density switches, that are perfect for ToR or core/aggregation switching
Achieve optimum density, cost-effectiveness and performance

Dell PowerSwitch S5212F-ON

12 x 25GbE SFP28 ports
3 x 100GbE QFSP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S5224F-ON

24 x 25GbE SFP28 ports
4 x 100GbE QSFP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S5248F-ON

48 x 25GbE SFP28 ports
4 x 100GbE QSFP28 ports
2 x 100GbE QFSP28-DD ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S5296F-ON

96 x 25GbE SFP28 ports
8 x 100GbE QSFP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S5232F-ON

32 x 100GbE QSFP28 ports
Open Network Install Environment (ONIE) for zero-touch installation of alternate operating systems

Dell PowerSwitch S5448F-ON

48 x 100GbE SFP56-DD ports
8 x 400GbE QSFP56-DD ports
Open Network Install Environment (ONIE) for zero-touch installation of network operating systems

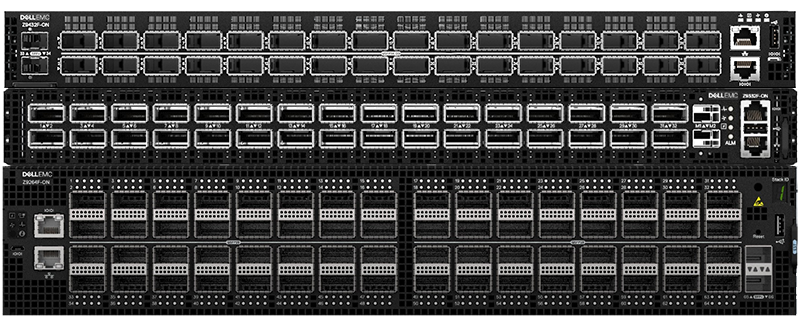

Dell PowerSwitch Z Series Switches

100GbE and 400GbE core/aggregation switches designed for building optimized data center leaf/spine fabrics of virtually any size.

A family of flexible, multi-rate 100GbE and 400GbE, high-performance switches for the future-ready data center
Provides the flexibility to stay ahead of data needs rather than reacting to them

Dell PowerSwitch Z9264F-ON

2RU high-density 100GbE fabric switch with up to 64 ports of 100GbE QSFP28 or up to 128 ports of 10/25/40/50GbE ports using breakout cables
Choice of leading network operating systems to simplify data center fabric orchestration and automation
Easy on-ramp to SDN for part or all of your production environment

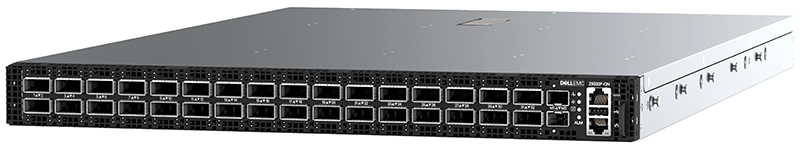

Dell PowerSwitch Z9332F-ON

1RU high-density 400GbE fabric switch with up to 32 ports of 400GbE or up to 128 ports of 100GbE using breakout cables.
Choice of leading network operating systems to simplify data center fabric orchestration and automation.
Multi-rate capabilities to meet emerging rack connectivity for 10/25/40/50/100/200GbE ports.

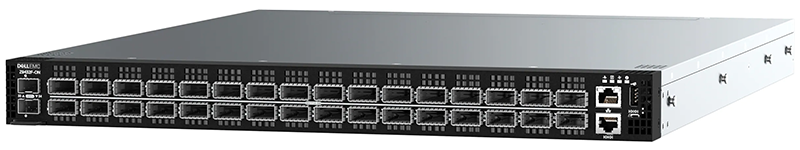

Dell PowerSwitch Z9432F-ON

1RU high-density 400GbE fabric switch with up to 32 ports of 400GbE or up to 128 ports of 100GbE using breakout cables.
Choice of leading network operating systems to simplify data center fabric orchestration and automation.
Multi-rate capabilities to meet emerging rack connectivity for 10/25/40/50/100/200GbE ports.

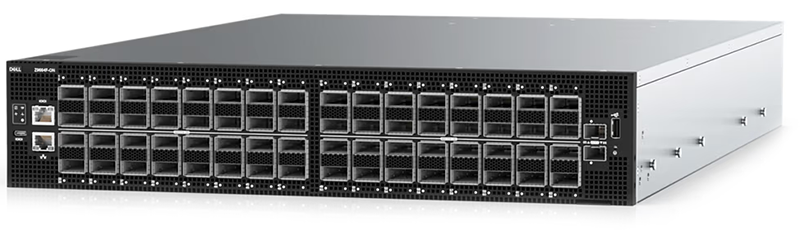

Dell PowerSwitch Z9664F-ON

High-density multi-rate 100/400GbE ToR/MoR server aggregation in high-performance data center environments at the desired fabric speed.
Fabric implementation in leaf and spine along with S-series ToR switches enabling cost-effective aggregation of 100/400 uplinks.
Multi-functional 10/25/40/50/100/200/400GbE switching in High Performance Computing clusters or other business-sensitive deployments requiring the highest bandwidth.

Open Networking solutions for the software-defined data center

The Dell vision of the new data center networking model is an open ecosystem in which organizations can take their pick from innovative, industry-standard network applications, network operating systems and network hardware.

Open networking solutions enable IT managers to build an application-agnostic infrastructure and simplify data center management with standard automation tools and standards-based open platforms.

Industry Leader

First vendor to offer the disaggregated networking model

Innovative Products

Delivering networking systems with state-of-the-art technology

End-to-End Solutions

Integrated best-in-class networking, servers and storage solutions with global services and reach
