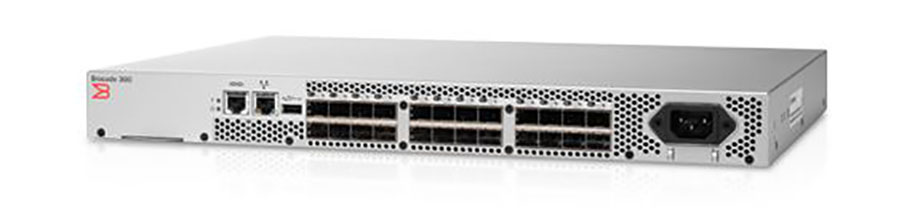

Brocade 300 Fibre Channel Switch

Overview:

The 8 Gbit/sec Fibre Channel Brocade 300 provides a simple, affordable, single-switch solution for both new and existing SANs. To simplify deployment, the Brocade 300 features the EZSwitchSetup wizard and other usability and configuration enhancements, as well as the optional Brocade Access Gateway mode of operation. Moreover, it provides state-of-the-art performance and Ports On Demand scalability to support SAN expansion and enable long-term investment protection.

Fast, Reliable 8-Gbit/sec Performance

Non-blocking and non-oversubscribed platform with a total bandwidth of 408 Gbit/sec in 1U
Designed to increase network performance with enhanced Brocade Inter-Switch Link (ISL) Trunking, which allows up to eight ports (at 2-, 4-, or 8-Gbit/sec speeds) between a pair of switches to be combined to form a single, logical ISL with a speed up to 64 Gbit/sec
Utilizes extended distance support to enable native Fibre Channel extension greater than 590 km

Simple Deployment and Management

Utilizes the Brocade EZSwitchSetup wizard, which can make SAN configuration a simple 3-step point-and-click task
Includes a USB port that can increase serviceability and error logging by facilitating firmware upgrades and downloads of system log files
Features an easy-to-use, non-blocking and non-oversubscribed platform that is designed to eliminate time wasted on managing ports and cables

Excellent Value for a Variety of SAN Environments

Offers dual functionality as a full fabric FC SAN switch or as a Brocade Access Gateway, providing seamless connectivity into any vendor SAN environment
Designed to provide a greater than 40 percent power efficiency improvement (Watts/Gbit) over the previous generation of Brocade switches — further reducing power consumption and the overall cooling burden in a data center

Specifications:

Legend: S — Standard, OA — Option Available, N — Not Available

Brocade 300 Fibre Channel Switch Specifications
Aggregate bandwidth 408 Gbit/sec: 24 ports × 8.5 Gbit/sec (line rate) × 2 (full duplex) Certified maximum 6000 active nodes; single fabric up to 56 switches, 19 hops; larger fabrics certified as required. Chassis Rack Size 1U Width 42.88 cm (16.88 in) Height 4.29 cm (1.69 in) Depth 30.66 cm (12.07 in) Weight 4.2 kg (9.3 lb) with single power supply, no SFP Diagnostics POST and embedded online/offline diagnostics, including RAS trace logging, environmental monitoring, non-disruptive daemon restart, FCping and Pathinfo (FC traceroute), port mirroring (SPAN port). Environmental Operating Conditions Temperature Operating: 0°C to 40°C (32°F to 104°F) Non-Operating: -25°C to 70°C (-13°F to 158°F) Humidity Operating: 10 to 85 percent non-condensing Altitude Operating: Up to 3000 meters (9,842 feet) Storage: Up to 12 kilometers (39,370 feet) Shock Operating: 20 g, 6 ms half-sine Non-operating: Half sine, 33 g 11 ms, 3/eg Axis Vibration Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz Air Flow: High speed: 23 CFM (cu. ft./min) Low speed: 18 CFM Fabric latency 700 nanoseconds with no contention, cut-through routing at 8 Gbit/sec Fabric Services Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP v3, Reliable Commit Service (RCS), Dynamic Path Selection (DPS), Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning), NPIV, FDMI, Management Server, FSPF, Fabric Watch; ISL Trunking; Advanced Performance Monitoring, Adaptive Networking (per-data flow QoS, Ingress Rate Limiting, Traffic Isolation, fabric dynamics profiling, application “Top Talkers” report), Enhanced Group Management, Integrated Routing, IPFC Fibre Channel ports 24 ports, universal (E, F, M, FL or N) All Brocade switches Frame-based trunking with up to eight 8 Gbit/sec ports per ISL trunk with optional license; up to 68 Gbit/sec per ISL trunk (8 ports × 8.5 Gbit/sec [line rate]) 2112-byte payload Scalability Full-fabric architecture with 239 switches maximum Classes of Service Class 2, Class 3, Class F (inter-switch frames)	Media Types 4 Gbit/sec: Requires Brocade hot-pluggable,Small Form-factor Pluggable (SFP), LC connector; 4 Gbit/sec Short-Wavelength Laser (SWL) 8 Gbit/sec: Requires Brocade hot-pluggable SFP+, LC connector; Short-Wavelength Laser (SWL); distance depends on fiber-optic cable; 8 Gbit/sec Extended Long-Wavelength Laser (ELWL). Management Telnet®, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB); Auditing, Syslog, Change, Management tracking; EZSwitchSetup wizard; Brocade Advanced Web Tools; Brocade EFCM Standard/Enterprise 9.x (optional); Brocade Fabric Manager (optional: FOS environments (only); SMI-S compliant, SMI-S scripting toolkit, Administrative Domains; trial licenses for select add on capabilities. Management Access: 10/100 Ethernet (RJ-45), in-band over Fibre Channel; serial port (RJ-45); USB; call-home integration enabled through Brocade EFCM and Brocade Fabric Manager Options Rack-mount rail kits (fixed, slide, mid-mount) Performance 1.063 Gbit/sec line speed, full duplex; 2.125 Gbit/sec line speed, full duplex; 4.25 Gbit/sec line speed, full duplex; 8.5 Gbit/sec line speed, full duplex. Auto-sensing of 1 Gbit/sec, 2 Gbit/sec, 4 Gbit/sec, and 8 Gbit/sec port speeds; optionally programmable to fixed port speed. Speed-matching between 1, 2, 4, and 8 Gbit/sec ports. FL_Port, F_Port, E_Port, M_Port (Mirror Port), and self-discovery based on switch type (U_Port); N_Port if using Access Gateway feature Power Maximum output 75 Watts System power consumption 57 Watts max (with 24 ports at 8Gbit/sec), 48 Watts nominal Nominal input voltage 100 to 240 VAC, Universal Input line frequency 47 to 63 Hz Minimum input voltage 85 VAC Maximum input voltage 264 VAC BTU rating (80% efficiency) 195 BTU/hr Inrush current 21.5 Amps @ 240Vac Regulatory The 300 complies with the following safety certifications: United States Bi-Nat UL/CSA 60950-1 1st Ed or latest; ANSI C63.4 Canada Bi-Nat UL/CSA 60950-1 1st Ed or latest; ICES-003 Class A Japan CISPR22 and JEIDA (Harmonics) European Community EN60950-1 or latest EN55022 and EN55024 Australia/New Zealand -- EN55022 or CISPR22 or AS/NZS CISPR22 Argentina IEC60950-1 or latest Russian Federation IEC60950-1 or latest 51318.22-99 and 51318.24.99 or latest Korea KN22 and KN24

Brocade 300 Fibre Channel Switch Specifications

Aggregate bandwidth

408 Gbit/sec: 24 ports × 8.5 Gbit/sec (line rate) × 2 (full duplex)

Certified maximum

6000 active nodes; single fabric up to 56 switches, 19 hops; larger fabrics certified as required.

Chassis

Rack Size 1U
Width 42.88 cm (16.88 in)
Height 4.29 cm (1.69 in)
Depth 30.66 cm (12.07 in)
Weight 4.2 kg (9.3 lb) with single power supply, no SFP

Diagnostics

POST and embedded online/offline diagnostics, including RAS trace logging, environmental monitoring, non-disruptive daemon restart, FCping and Pathinfo (FC traceroute), port mirroring (SPAN port).

Environmental Operating Conditions

Temperature
Operating: 0°C to 40°C (32°F to 104°F)
Non-Operating: -25°C to 70°C (-13°F to 158°F)

Humidity
Operating: 10 to 85 percent non-condensing

Altitude
Operating: Up to 3000 meters (9,842 feet)
Storage: Up to 12 kilometers (39,370 feet)

Shock
Operating: 20 g, 6 ms half-sine
Non-operating: Half sine, 33 g 11 ms, 3/eg Axis

Vibration
Operating: 0.5 g sine, 0.4 grms random, 5 to 500 Hz
Non-operating: 2.0 g sine, 1.1 grms random, 5 to 500 Hz

Air Flow:
High speed: 23 CFM (cu. ft./min)
Low speed: 18 CFM

Fabric latency

700 nanoseconds with no contention, cut-through routing at 8 Gbit/sec

Fabric Services

Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP v3, Reliable Commit Service (RCS), Dynamic Path Selection (DPS), Brocade Advanced Zoning (default zoning, port/WWN zoning, broadcast zoning), NPIV, FDMI, Management Server, FSPF, Fabric Watch; ISL Trunking; Advanced Performance Monitoring, Adaptive Networking (per-data flow QoS, Ingress Rate Limiting, Traffic Isolation, fabric dynamics profiling, application “Top Talkers” report), Enhanced Group Management, Integrated Routing, IPFC

Fibre Channel ports

24 ports, universal (E, F, M, FL or N)
All Brocade switches
Frame-based trunking with up to eight 8 Gbit/sec ports per ISL trunk with optional license; up to 68 Gbit/sec per ISL trunk (8 ports × 8.5 Gbit/sec [line rate])
2112-byte payload

Scalability

Full-fabric architecture with 239 switches maximum

Classes of Service

Class 2, Class 3, Class F (inter-switch frames)

Media Types

4 Gbit/sec:
Requires Brocade hot-pluggable,Small Form-factor Pluggable (SFP), LC connector; 4 Gbit/sec Short-Wavelength Laser (SWL)

8 Gbit/sec: Requires Brocade hot-pluggable SFP+, LC connector; Short-Wavelength Laser (SWL); distance depends on fiber-optic cable; 8 Gbit/sec Extended Long-Wavelength Laser (ELWL).

Management

Telnet®, HTTP, SNMP v1/v3 (FE MIB, FC Management MIB); Auditing, Syslog, Change, Management tracking; EZSwitchSetup wizard; Brocade Advanced Web Tools; Brocade EFCM Standard/Enterprise 9.x (optional); Brocade Fabric Manager (optional: FOS environments (only); SMI-S compliant, SMI-S scripting toolkit, Administrative Domains; trial licenses for select add on capabilities.

Management Access:

10/100 Ethernet (RJ-45), in-band over Fibre Channel; serial port (RJ-45); USB; call-home integration enabled through Brocade EFCM and Brocade Fabric Manager

Options

Rack-mount rail kits (fixed, slide, mid-mount)

Performance

1.063 Gbit/sec line speed, full duplex; 2.125 Gbit/sec line speed, full duplex; 4.25 Gbit/sec line speed, full duplex; 8.5 Gbit/sec line speed, full duplex. Auto-sensing of 1 Gbit/sec, 2 Gbit/sec, 4 Gbit/sec, and 8 Gbit/sec port speeds; optionally programmable to fixed port speed. Speed-matching between 1, 2, 4, and 8 Gbit/sec ports.

FL_Port, F_Port, E_Port, M_Port (Mirror Port), and self-discovery based on switch type (U_Port); N_Port if using Access Gateway feature

Power

Maximum output
75 Watts

System power consumption
57 Watts max (with 24 ports at 8Gbit/sec), 48 Watts nominal

Nominal input voltage
100 to 240 VAC, Universal

Input line frequency
47 to 63 Hz

Minimum input voltage
85 VAC

Maximum input voltage
264 VAC

BTU rating (80% efficiency)
195 BTU/hr

Inrush current
21.5 Amps @ 240Vac

Regulatory

The 300 complies with the following safety certifications:
United States Bi-Nat UL/CSA 60950-1 1st Ed or latest; ANSI C63.4
Canada Bi-Nat UL/CSA 60950-1 1st Ed or latest; ICES-003 Class A
Japan CISPR22 and JEIDA (Harmonics)
European Community EN60950-1 or latest EN55022 and EN55024
Australia/New Zealand -- EN55022 or CISPR22 or AS/NZS CISPR22
Argentina IEC60950-1 or latest
Russian Federation IEC60950-1 or latest 51318.22-99 and 51318.24.99 or latest
Korea KN22 and KN24

Documentation:

Download the Brocade 300 Fibre Channel Switch Spec Sheet (PDF).
