Dell N1108EP-ON
Fully managed 1GbE Layer 2 switching with Open Networking capabilities


Dell N1108EP-ON

Dell Products
Dell PowerSwitch Edge Switches

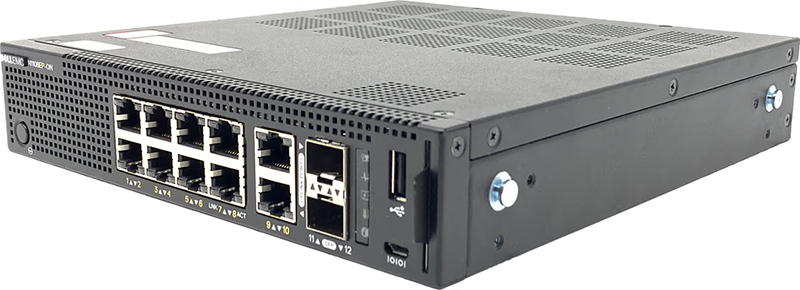

Dell PowerSwitch N1108EP-ON Switch
8x 10/100/1000Mbps half/full duplex ports, 2x GbE RJ45 and 2x GbE SFP interfaces, 8xPoE/PoE+, 137W PoE power budget RJ45, FastPoE, Perpetual PoE,1 RU half-width, fanless operation
#N1108EP-ON
Contact us for Pricing!



Overview:

The N1108EP-ON switch offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 1GbE uplinks. The switch supports flexible power options such as PoE pass-through or an external power adapter or both to provide power redundancy to the switch. The switch comes with high-performance capabilities and wire-speed performance, utilizing a nonblocking architecture to easily handle unexpected traffic loads. Fanless operation and features such as EnergyEfficient Ethernet and short cable detection provide energy efficiency to help decrease power and cooling costs.

Modernize campus network architectures

Modernize campus network architectures with a powerefficient and resilient 1GbE switching solution with up to 8 PoE/PoE+ ports. PoE power budgets up to 137W delivering clean power to network devices such as wireless access points (APs), voice over-IP (VoIP) handsets, video conferencing systems and security cameras.

Leverage familiar tools and practices

N1108EP-ON switch includes Dell Networking OS6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. One common command line interface (CLI) and graphic user interface (GUI) using a well-known command language gets skilled network administrators productive quickly. The N1108EP-ON switch also supports the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.

Deploy with confidence

N1108EP-ON switch helps create performance assurance with a data rate up to 24Gbps (full duplex) and a forwarding rate up to 18Mpps. N1108EP-ON switch provides certainty with a lifetime warranty* that covers software upgrades, hardware repair or replacement, and optics and cables purchased with the switch.


Hardware, performance and efficiency

  • Up to 10 line-rate GbE RJ45 ports and two integrated 1GbE SFP ports
  • Up to 8 PoE/PoE+
  • PoE pass-through to power the switch as well as PoE end devices (switch draws power from an uplink PoE device without needing a dedicated power supply)
  • External power adapter
  • Power redundancy between PoE pass-through and external power adapter
  • Energy-Efficient Ethernet and lower power PHYs reduce power to inactive ports and idle links, providing energy savings from the power cord to the port
  • Fresh Air compliance for operation in environments up to 113°F (45°C) helps reduce cooling costs in temperature-constrained deployments

Deploying, configuring and managing

  • USB auto-configuration rapidly deploys the switch without setting up complex TFTP configurations or sending technical staff to remote offices
  • Management via an intuitive and familiar CLI, embedded web server (GUI), SNMPbased management console application (including Dell OpenManage Network Manager), Telnet or serial connection
  • Private VLAN extensions and Private VLAN Edge support
  • AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support
  • Authentication tiering allows network administrators to tier port authentication methods such as 802.1x, MAC Authentication Bypass and Captive Portal in priority order so that a single port can provide flexible access and security
  • Remote Switch Port Analyzer (RSPAN) monitors ports across a Layer 2 domain without costly dedicated network taps
