Dell N1108T-ON

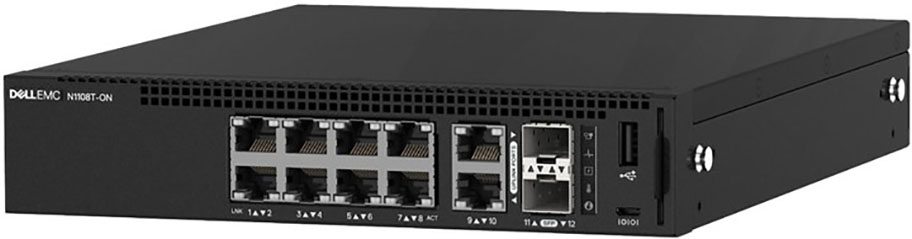

Dell PowerSwitch N1108T-ON Switch

Overview:

All N-Series switches include Dell Networking OS 6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators.

In addition to supporting the Open Network Install Environment (ONIE) allowing for installation of alternate network operating systems, the N1100 switch series simplifies deployment, configuration and management by:

• Offering a more flexible choice for your network by uniting products with the latest open standard protocols
• Utilizing one common command line interface (CLI) and graphic user interface (GUI) using a well-known command language
• Promoting greater interoperability through interfaces with Cisco's Rapid Per VLAN Spanning Tree (RPVST+) and devices using Cisco Discovery Protocol (CDP)
• Integrating with industry-leading management tools for a cohesive wired and wireless network

Designed for efficiency

Built to help keep operating costs down, the N1100 Series can operate at temperatures up to 113°F (45°C) to help reduce cooling costs. Improve your overall efficiency with these great features:

• Fanless operation in 8-, 24-, and 48-port models (N1108T-ON, N1124T-ON, and N1148T-ON)
• Variable speed fan control available on 48-port PoE model (N1148P-ON)
• Energy-efficient Ethernet and low-power PHYs to help reduce power to inactive ports and idle links

Deploy with confidence

With high throughput and capacity to handle unexpected workloads, the N1100 Series switches are ideal solutions for fast-growing GbE networks that require high-density aggregation with seamless redundancy and availability. Take advantage of the following features:

• Data rates up to 176Gbps (full duplex) and a forwarding rate of up to 164Mpps
• Four 10GbE SFP+ ports for high-speed uplinks and a stacking architecture up to four units at 40Gbps
• Switch stacks up to 196 1GbE ports that can be managed from a single screen or IP address

Specifications:

Legend: S — Standard AO — Available Optional N — Not Available

	N1108P-ON / N1108T-ON	N1124P-ON / N1124T-ON	N1148P-ON / N1148T-ON
Chassis
Approximate Weight in pounds	4.43lbs / 3.54lbs	8.33lbs / 6.72lbs	9.19lbs / 8.33lbs
Approximate Weight in kilograms	2.01kg / 1.61kg	3.78kg / 3.05kg	4.17kg / 3.78kg
Power Supply (Watts)	104W AC / 24W AC	250W AC / 40W AC	500W AC / 60W AC
Max Thermal Output (BTU/hr)	292.62 / 35.72	851.66 / 65.85	1566.15 / 102.98
Power Consumption Max (Watts)	N / 10.47	N / 19.3	N / 30.18
Dimensions in inches (H x W x D)	1.75 in x 8.5 in x 10 in	1.75 in x 17 in x 10 in	1.75 in x 17 in x 10 in
Dimensions in millimeters (H x W x D)	44.45 mm x 215.9 mm x 254 mm	44.45 mm x 431.8 mm x 254 mm	44.45 mm x 431.8 mm x 254 mm
Environmental Operating Conditions
Operating temperature	0° to 45°C (32° to 113° F)
Storage temperature	-40° to 65° C (-40° to 149° F)
Operating relative humidity	95%
Storage relative humidity	85%
Power Supply Efficiency:	80% or better in all operating modes
Performance
Switch fabric capacity	24Gbps	128Gbps	176Gbps
Forwarding rate	18Mpps	96Mpps	132Mpps
Packet buffer memory	2MB	2MB	2MB
Port Attributes
1GbE Port Attributes Multi-speed	8x 10/100/1000Mbps half/full duplex ports	24x 10/100/1000Mbps half/full duplex ports	48x 10/100/1000Mbps half/full duplex ports
1GbE Port Attributes Single-speed	2x 1000Mbps half/full duplex RJ45 ports	N/A	N/A
Integrated 1GbE SFP dedicated ports	2	N/A	N/A
Integrated 10GbE SFP+ dedicated ports (10 Gbps)	N/A	4	4
Power-over-Ethernet Plus (PoE/PoE+) Ports	4 / N	12 / N	24 / N
Auto-negotiation for speed and flow control	S	S	S
Auto MDI/MDIX	S	S	S
Port mirroring and Flow-based port mirroring	S	S	S
Broadcast storm control	S	S	S
Energy Efficient Ethernet per port settings	S	S	S
Port Profile support including Admin profiles	S	S	S
Management & Configuration-Port Attributes	1 USB (Type A) port for configuration
Power
Integrated power supply (not removable)	S	S	S
Air flow	IO to PSU (Normal)	IO to PSU (Normal)	IO to PSU (Normal)
Switch Attributes
Line-rate Layer 2 switching	S	S	S
Dual firmware images on-board	S	S	S
Temperature sensors for environmental monitoring	S	S	S
Cable diagnostics	S	S	S
Switch auditing support	S	S	S
CPU Memory	1GB	1GB	1GB
Flash Memory	1GB	1GB	1GB

Documentation:

Download the Dell PowerSwitch N1108T-ON Switch Datasheet (PDF).
