Dell Networking W-AP92/93 Access Points
Multifunction Access Points for Your Wireless Network
Sorry, this product is no longer available, Please, contact us for a replacement product!
Overview:
The multifunction Dell Networking W-AP92 and W-AP93 are entry-level indoor, single-radio 802.11n access points (APs) designed for low-density deployments in offices, hospitals, schools and retail stores. These compact, high-speed APs deliver wire-like performance at data rates up to 300 Mbps.

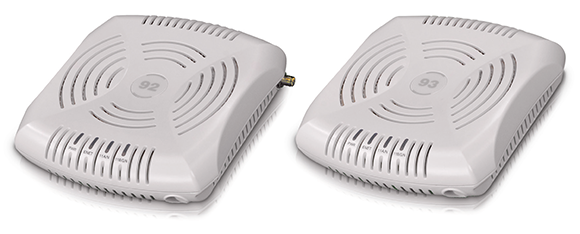

The W-AP92 features a single 2x2 multiple input, multiple output (MIMO) dual-band 2.4-GHz/5-GHz radio with interface to connect external antennas while the W-AP93 features the same radio with integrated internal antennas. Both APs are built to provide years of trouble-free operation and are backed by an Extended Lifetime Warranty.
Working with Dell’s line of centralized PowerConnect W Series Controllers, the W-AP92 and W-AP93 deliver secure, high-speed wireless network services for user mobility that works seamlessly within enterprise, branch office and campus network deployments. 802.11n enables the use of wireless as a primary connection with speed and reliability comparable to a wired LAN. It also increases performance by utilizing techniques such as channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases range and reliability.
Key to ensuring wire-like performance and reliability is the W-Series Adaptive Radio Management (ARM), which manages the 2.4-GHz and 5-GHz radio bands to deliver maximum client performance. Adaptive Radio Management enables different 802.11 a, b,g and n wireless clients to operate on the same network at maximum possible performance through the use of band steering, airtime fairness policies between clients, and by managing channel interference that may occur between access points.
The multifunction W-AP92 and W-AP93 can be configured through the controller to provide wireless LAN (WLAN) access with part-time air monitoring, dedicated air monitoring for wireless IPS, Remote AP (RAP) functionality or secure enterprise mesh. The W-AP92 and W-AP93 each feature a 10/100/1000BASE-T Ethernet interface and can operate from standard power-over-Ethernet (PoE) sources or a 12-volt DC power supply.
W-Series Access Points:
| Dell Networking Products | |
|---|---|
| Dell W-Series Access Points | |
 |
W-Series AP224/225 802.11ac Access Points W-Series AP224 (external antenna) and W-Series AP225 (internal antenna) are 802.11ac access points, supporting the new 5GHz industry standard for gigabit wireless data rates. These purpose-built 3x3 MIMO 802.11ac access points are designed to deliver blazing fast performance that is up to three times higher than comparable 802.11n access points. Dual-radio configurations enable flexible deployments:
The AP224 and AP225 each include dual GbE ports to access wired backbones and are powered by Power-over-Ethernet 802.3at (PoE+) or an optional adapter. |
 |
W-Series AP274/275 802.11ac Outdoor Access Points W-Series AP274/275 access points are innovative and aesthetic designs that deliver Gigabit WiFi performance to 802.11ac mobile devices. These purpose-built access points are designed to survive harsh outdoor environments, including extreme high and low temperatures as well as persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. With a maximum data rate of 1.3Gbps in the 5-GHz band and 600Mbps in the 2.4-GHz band, the AP274/275 outdoor APs support concurrent dual-radio operation. |
 |
W-Series AP155/155P Wired + Wireless Access Points Dual-band, dual-radio APs offering wire-like data rates of up to 450Mbps per radio. The AP155 and AP155P each have four ports available to the wired network and a USB port to connect to 3G and 4G networks. The W-Series AP155P has two Power-over-Ethernet (PoE)-capable LAN ports that can be used to power an external PoE-enabled device, such as an IP phone.
|
 |
W-AP134/135 Access Points Enterprise-grade W-Series AP134 (external antenna) and AP135 (internal antenna) are the highest-performing W-Series 802.11n dual-radio indoor access points, designed to deliver data rates of up to 450Mbps per radio, up to 900Mbps total for denser environments. |
 |
W-Series AP114/115 Access Points W-Series AP114 (external antenna) and AP115 (internal antennas) are high-performance, dual-radio 802.11n access points designed to deliver data rates up to 450Mbps per radio, suited for medium density deployments. |
 |
W-AP104/105 Access Points W-Series AP104 (external antenna) and W-Series AP105 (internal antenna) are enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total for medium density deployments. |
 |
W-Series AP103 Access Points W-Series AP103 access points provide cost-effective dual-band coverage in medium-density enterprise WiFi environments while minimizing interference from cellular networks. These compact APs deliver wireless data rates up to 300Mbps per radio employing 802.11n technology with two spatial MIMO streams. The AP103 features a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated omnidirectional down-tilt antennas per radio. |
 |
W-AP175 Outdoor Access Points Enterprise-grade family of mainstream dual-radio 802.11n outdoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total. Ideal for campuses, industrial parks and other harsh, outdoor open-air environments, W-Series AP175 access points can be powered via PoE, AC or DC power sources and include convenient wall and mast mounting options as well as a solar shield. |
 |
W-AP92/93 Access Points W-Series AP92 (external antenna) and W-Series AP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps. |
 |
W-AP93H Wired + Wireless Access Point A special-purpose 802.11n indoor access point with built-in 4-port fast Ethernet switch designed to deliver wireless data rates of up to 300Mbps. W-Series AP93H is specifically designed to be mounted over a network wall socket. Mounting kits sold separately. |
 |
W-AP68 Access Point Designed to deliver data rates of up to 150Mbps for organizations that are looking for a basic enterprise-grade 802.11n access point. |
Compare Entry Level:
Legend: S —Standard AO — Available Optional N — Not Available
| W-Series Access Points Entry Level Comparision Specs | |||||
|---|---|---|---|---|---|
| W-AP92 / W-AP93 |
W-AP93H+ | W-AP103 | W-AP104 / |
W-AP175AC / W-AP175P |
|
| Data rate | 300Mbps | 300Mbps | 300 Mbps 2x2 MIMO 802.11n |
600Mbps (300Mbps each radio) |
600Mbps (300Mbps each radio) |
| Radios | Dual radios: 2.4 and 5GHz band |
Single radio: 2.4 or 5GHz band |
Dual radio, 5-GHz and 2.4-GHz 802.11n 2x2:2 |
Dual radios: 2.4 and 5GHz band |
Dual radios: 2.4 and 5GHz band |
| Operating frequencies | 2.4-2.5 GHz | 2.4-2.5 GHz | 2.4000 GHz to 2.4835 GHz 5.150 to 5.250 GHz 5.250 to 5.350 GHz 5.470 to 5.725 GHz 5.725 to 5.850 GHz |
N/A | N/A |
| Antennas | W-AP92: two RP-SMA for W-AP93 two internal omni-directional, dual-band |
Two internal omni-directional, dual-band antennas | Four integrated down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz, 4.1 dBi at 5.2 GHz and 4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. |
W-AP104: four RP-SMA for external 2.4 and 5GHz antennas W-AP105: four internal omni-directional, dual-band |
Four N-type interfaces (two per band) for external 2.4 and 5GHz antennas |
| Network interfaces | One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX | One 10/100/100/1000 Base-T Ethernet, auto-sensing MDI/MDX, Four 10/100Base-T, and One passive RJ-45 pass-through interface (2 ports) | 10/100/1000 BASE-T Ethernet network interface (RJ-45); Auto-sensing link speed and MDI/MDX; 802.3az Energy Efficient Ethernet (EEE); PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+ | One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX | One 100/1000 Base-T Ethernet, auto- sensing MDI/MDX |
| Other interfaces | Console interface (RJ45) | Console interface (RJ45) | DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length; Serial console interface (proprietary; optional adapter cable available) | Console interface (RJ45) | Console interface (USB) |
| Power over Ethernet (PoE) interfaces | 48V DC 802.3af- compatible | 48V DC 802.3af- compatible | Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source | W-AP175P: 802.3at-compatible PoE input (PD) W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE) |
W-AP175P: 802.3at-compatible PoE input (PD) W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE) |
| Power interfaces | 12V DC, 1.25A | 12V DC, 1.25A | Direct DC source: 12 Vdc nominal, +/- 5% | 48V DC 802.3af- compatible | 12–48V DC or 100–240V AC |
| Power consumption | 10 Watts (maximum) |
9 Watts (maximum) | Max 9.5W (POE) or 8W (DC) |
12V DC, 1.25A 12.5 Watts (maximum) |
18 Watts (maximum) |
| Environmental Class | Indoor, plenum-rated | Indoor | Indoor | Indoor, plenum-rated | Outdoor |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
0°C to 40°C (32°F to 104°F) |
0° C to +40° C (+32° F to +104° F) |
0°C to 50°C (32°F to 122°F) |
W-IAP175P: –30°C to +60°C (–22°Fto +140°F) W-IAP175AC and W-IAP175DC: –40°C to +55°C (–40°F to 131°F) |
Specifications:
| Dell Networking W-AP92/93 Access Points Specifications | |
|---|---|
Operating mode
Radios
Wireless radio specifications
Antenna
|
Interfaces
Power options
Mounting
Mechanical
Environmental
Certifications/Regulatory
Minimum OS version
Extended Life Warranty* *Select Networking Products carry an Extended Life Warranty with Basic Hardware Service. Warranty covers repair or replacement of the product for as long as it remains in use by the customer. In the event of discontinuance of product manufacture, Dell Extended Life Warranty extends until five (5) years after end of product model sales. Warranty limits any power supply, antennae or accessories to one (1) year from date of purchase. Warranty does not include troubleshooting, configuration, or other advanced service provided by Dell ProSupport. The Extended Life Limited Hardware Warranty is not transferrable. For more information see dell.com/warranty. |
Performance Table:
| Dell Networking W-AP92/93 Access Points RF Performance Table | ||||
|---|---|---|---|---|
| Max TX power per active TX chain (dBm) | RX Sensitivity (dBm) | Max TX power per active TX chain (dBm) | RX Sensitivity (dBm) | |
| 2.4 GHz | 5 GHz | |||
| 802.11b | ||||
| 1Mbps | 18 | -96 | - | - |
| 2Mbps | 18 | -96 | - | - |
| 5.5Mbps | 18 | -94 | - | - |
| 11Mbps | 18 | -93 | - | - |
| 802.11a/g | ||||
| 6Mbps | 18 | -93 | 18 | -93 |
| 9Mbps | 18 | -93 | 18 | -93 |
| 12Mbps | 18 | -87 | 18 | -87 |
| 18Mbps | 18 | -87 | 18 | -87 |
| 24Mbps | 18 | -85 | 18 | -85 |
| 36Mbps | 15 | -82 | 15 | -82 |
| 48Mbps | 14 | -80 | 14 | -80 |
| 54Mbps | 14 | -80 | 14 | -80 |
| 802.11n HT20 | ||||
| MCS0 | 18 | -93 | 18 | -93 |
| MCS1 | 17 | -93 | 17 | -93 |
| MCS2 | 17 | -87 | 17 | -87 |
| MCS3 | 16 | -87 | 16 | -87 |
| MCS4 | 16 | -83 | 16 | -83 |
| MCS5 | 15 | -80 | 15 | -80 |
| MCS6 | 14 | -77 | 14 | -77 |
| MCS7 | 13 | -75 | 13 | -75 |
| MCS8 | 18 | -93 | 18 | -93 |
| MCS9 | 17 | -93 | 17 | -93 |
| MCS10 | 17 | -87 | 17 | -87 |
| MCS11 | 16 | -87 | 16 | -87 |
| MCS12 | 16 | -83 | 16 | -83 |
| MCS13 | 15 | -80 | 15 | -80 |
| MCS14 | 14 | -77 | 14 | -77 |
| MCS15 | 13 | -75 | 13 | -75 |
| 802.11n HT40 | ||||
| MCS0 | 18 | -90 | 18 | -90 |
| MCS1 | 17 | -90 | 17 | -90 |
| MCS2 | 17 | -87 | 17 | -87 |
| MCS3 | 16 | -84 | 16 | -84 |
| MCS4 | 16 | -80 | 16 | -80 |
| MCS5 | 15 | -77 | 15 | -77 |
| MCS6 | 14 | -77 | 14 | -77 |
| MCS7 | 13 | -73 | 13 | -73 |
| MCS8 | 18 | -90 | 18 | -90 |
| MCS9 | 17 | -90 | 17 | -90 |
| MCS10 | 17 | -87 | 17 | -87 |
| MCS11 | 16 | -84 | 16 | -84 |
| MCS12 | 16 | -80 | 16 | -80 |
| MCS13 | 15 | -77 | 15 | -77 |
| MCS14 | 14 | -77 | 14 | -77 |
| MCS15 | 13 | -73 | 13 | -73 |

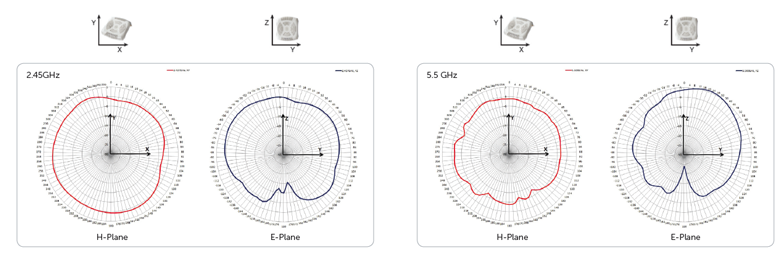

W-IAP93 Antenna Plots
Documentation:
Download the Dell Networking W-AP92/93 Access Points Data Sheet (PDF).
