Overview:
Entry level 300 Mbps 802.11n access point, with built in virtual controller offering simplicity, manageability and access point clustering capability.
Dell Networking W-IAP92 and W-IAP93 are 802.11n based instant access points (IAP) that deliver the affordability and simplicity of an entry-level enterprise-grade Wi-Fi network.

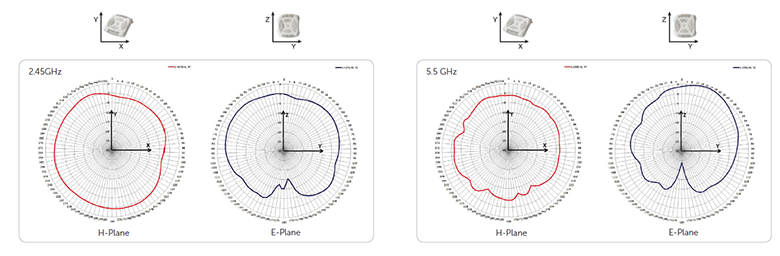

The W-IAP92 has a single radio that works in either 2.4 or 5GHz band (single radio, dual band) with the interface to connect external antennas while the W-IAP93 offers the same features as IAP-92 but has built in internal omni-directional antennas. Both are built to provide years of trouble-free operation and are backed by Extended Lifetime Warranty.
Virtual controller technology
The virtual controller technology in Networking W-IAP92 and W-IAP93 delivers enterprise-grade controller capabilities without needing a separate access point controller. The virtual controller in a single IAP is capable of controlling multiple number of other IAPs in a network that are either local or dispersed across multiple locations. Like a dedicated controller an IAP is able to perform key tasks such as AP auto discovery, 802.1X authentication, role- and device-based policy enforcement, rogue detection as well as specialized Adaptive Radio Management (ARM) that optimizes Wi-Fi client behavior by making sure that IAPs stay clear of RF interference. When multiple IAPs are connected together, a single IAP acts as a primary virtual controller. In the event of primary virtual controller failure, another W-series IAP in a chain automatically takes on the role with no disruption to services. Scalability of IAP network is bounded by Layer-2 network design best practices. However, for W-IAP92/93 based networks the maximum limit is sixteen.
Ease of deployment
Networking W-IAP is up and running in minutes. From a laptop, simply connect wirelessly to an SSID to perform over-the-air provisioning in quick easy steps. To expand, just install more Networking W-IAP – configuration is automatically applied to new units.
Management and visibility
Multiple Networking W-IAP networks can be securely and centrally managed by Dell Networking W-Series AirWave software management suite, allowing W-IAPs to operate hundreds of remote locations. With Dell Networking W-Series AirWave, IT has real-time visibility into users, mobile devices, Wired and Wireless LANs infrastructure all from a single management console.
In addition, Dell also offers the OpenManage Network Manager 5.0 (OMNM 5.0) management software that is an easy-to-use, web-based management interface tool that can be customized. OMNM 5.0 delivers support for the full line of Dell Networking products, including Force10, PowerConnect and W-Series wireless devices and offers enhanced features for traffic flow analysis, deployment, monitoring, and management. OMNM 5.0 comes with ten free licenses. Each IAP based network uses one license, you can use remaining nine licenses to use for your other devices.
Investment protection
As WLAN requirements expand, Networking W-IAP can be re-imaged as an 802.11n campus AP and migrate to a centralized Mobility Controller architecture capable of supporting hundreds and thousands of APs. Firmware to covert IAP to campus AP is available upon request. In addition to providing WLAN access, campus APs in a centralized, controller architecture can provide wireless intrusion protection and powerful spectrum analysis capabilities.
W-Series Instant Access Points:
| Dell W-Series Instant Access Points |
 |
W-Series IAP224/225 802.11ac Access Points
W-Series IAP224 (external antenna) and W-Series IAP225 (internal antenna) are 802.11ac access points, supporting the new 5GHz industry standard for gigabit wireless data rates. These purpose-built 3x3 MIMO 802.11ac access points are designed to deliver blazing fast performance that is up to three times higher than comparable 802.11n access points. Dual-radio configurations enable flexible deployments:
- 5GHz: 3x3 MIMO for 802.11ac, delivering data rates up to 1.3Gbps
- 2.4GHz: 3x3 MIMO for 802.11n, delivering data rates up to 450Mbps
The IAP224 and IAP225 each include dual GbE ports to access wired backbones and are powered by Power-over-Ethernet 802.3at (PoE+) or an optional adapter. |
 |
W-Series IAP274/275 802.11ac Outdoor Instant Access Points
W-Series IAP274/275 instant access points (IAPs) are innovative and aesthetic designs that deliver Gigabit WiFi performance to 802.11ac mobile devices. These purpose-built access points are designed to survive harsh outdoor environments, including extreme high and low temperatures as well as persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. With a maximum data rate of 1.3Gbps in the 5-GHz band and 600Mbps in the 2.4-GHz band, the IAP274/275 outdoor IAPs support concurrent dual-radio operation. |
 |
W-Series IAP134/135 Instant Access Points
Enterprise-grade W-Series IAP134 (external antenna) and IAP135 (internal are the highest-performing W-Series 802.11n dual-radio indoor access points, designed to deliver data rates of up to 450Mbps per radio, up to 900Mbps total for denser environments. |
 |
W-Series IAP114/115 Instant Access Points
W-Series IAP114 (external antenna) and IAP115 (internal antennas) high-performance, dual-radio 802.11n access points designed to deliver data rates up to 450Mbps per radio, suited for medium-density deployments. |
 |
W-Series IAP 108/109 Wired + Wireless Instant Access Points
Multifunctional dual-radio W-Series IAP 108 (connecters for external antenna) and W-Series IAP 109 (four integrated antennas) are 802.11abgn, 2x2:2 MIMO access points with instant or remote AP modes for wireless and wired networking in large deployments. With 300Mbps wireless data rate per radio, each IAP features:
- 10/100/1000BASE-T uplink port
- 10/100BASE-T local port
- USB port to connect to 3G and 4G networks
- Desktop form factor with optional wall/ceiling-mount support
|
 |
W-Series IAP104/105 Instant Access Points
W-Series IAP104 (external antenna) and W-Series IAP105 (internal antenna) are enterprise-grade dual-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total for medium density deployments. |
 |
W-Series IAP103 Instant Access Points
W-Series I AP103 instant access points (IAPs) provide cost - effective dual-band coverage in medium-density enterprise WiFi environments while minimizing interference from cellular networks. These compact APs deliver wireless data rates up to 300Mbps per radio employing 802.11n technology with two spatial MIMO streams. The I AP103 features a 2.4-GHz and a 5-GHz radio, each with 2x2:2 MIMO and two integrated omnidirectional down-tilt antennas per radio. |
 |
W-Series IAP175 Outdoor Instant Access Points
Enterprise-grade family of mainstream dual-radio 802.11n outdoor access points designed to deliver data rates of up to 300Mbps per radio, up to 600Mbps total. Ideal for campuses, industrial parks and other harsh, outdoor open-air environments, W-Series IAP175 instant access points can be powered via PoE, AC or DC power sources and include convenient wall and mast mounting options as well as a solar shield.
Enterprise-grade portable or desktop 802.11n indoor access points that offer data rates of up to 300Mbps. |
 |
W-Series IAP92/93 Instant Access Points
W-Series IAP92 (external antenna) and W-Series IAP93 (internal antenna) are entry-level, enterprise-grade, single-radio 802.11n indoor access points designed to deliver data rates of up to 300Mbps. |
 |
W-Series IAP3WN/IAP3WNP Wired + Wireless Instant Access Points
Enterprise-grade portable or desktop 802.11n indoor access points that offer data rates of up to 300Mbps.
W-Series IAP3WN features:
- Two 10/100Mbps LAN ports
- One 10/100/1000Mbps WAN port
- One USB port to connect to external cellular modem
W-Series IAP3WNP has one PoE-capable LAN port that can be used to power an external PoE-enabled device, such as an IP phone. |
 |
W-Series IAP155/155P Wired + Wireless Instant Access Points
Dual-band, dual-radio IAPs offering wire-like data rates of up to 450Mbps per radio with instant or remote AP-mode options. The IAP155 and IAP155P each have four ports available to the wired network and a USB port to connect to 3G and 4G networks. The W-Series IAP155P has two Power-over-Ethernet (PoE)-capable LAN ports that can be used to power an external PoE-enabled device, such as an IP phone.
- Dual-radio, concurrent dual-band access points
- 2x2 MIMO with two spatial streams and up to 300Mbps wireless data rate in 2.4GHz
- 3x3 MIMO with three spatial streams and up to 450Mbps wireless data rate in 5GHz
|
Dell PowerConnect Instant Access Point (IAPs) eliminate the need for an external controller and make it easier to set up and manage enterprise-grade wireless LAN (WLAN) while delivering the affordability and simplicity of an entry-level Wi-Fi network.
Ease of deployment
Networking W-IAP is designed to be up and running in minutes. From a laptop, simply connect wirelessly to perform over-the-air provisioning in a few easy steps. To expand the network, simply add more Networking W-IAPs—configuration is automatically applied to the new IAPs.
Enterprise features
The Virtual Controller technology integrated within a Networking W-IAP delivers enterprise-grade capabilities such as AP auto discovery, 802.1x authentication, role-and device-based policy enforcement, rogue detection and Adaptive Radio Management (ARM) to optimize Wi-Fi client behavior.
Management and visibility
Networking W-IAP includes a built-in web interface to manage IAP based WLAN network. Multiple Networking W-IAP networks can be securely and centrally managed by Dell Networking W-Series AirWave Wireless Management Suite, allowing groups of W-IAPs to operate in hundreds of remote locations. With Dell Networking W-Series AirWave, IT has real-time visibility into users, mobile devices and wireless and wired network status from a single management console.
In addition, Dell also offers the OpenManage Network Manager 5.0 (OMNM 5.0) management software that is an easy-to-use, web-based management interface tool that can be customized. It delivers support for the full line of Dell Networking products, including Force10, PowerConnect, & W-Series wireless devices and offers enhanced features for Traffic flow analysis, Deployment, Monitoring, and Management. OMNM 5.0 comes with ten free licenses. Each local IAP based network, regardless of number of IAP’s in network, is considered as one, leaving customer up to 9 licenses to manage other devices.
Investment protection
As WLAN requirements expand, Networking W-IAP can be converted via firmware as an 802.11n campus AP and migrate to a centralized Mobility Controller architecture.
| IAP vs. Controller based AP: Key High Level Differences |
| Mobility and Roaming |
Mobility across Layer-2 network |
Mobility supported across Layer-2 and Layer-3 network |
| Scalability |
Bounded by layer-2 network design best practices
Use AirWave to manage multiple IAP networks |
Thousands of APs |
| Security |
Decrypts traffic at the IAP |
Decrypts traffic at the central controller for applications that require this |
| VPN Termination Capability |
No |
Yes, Controller can be a VPN concentrator/ termination point |
| FIPS, NSA Suite B support. May be required by US Government/ Military. |
No |
Yes |
Product Comparison:
Legend: S —Standard AO — Available Optional N — Not Available
| Data rate |
300Mbps |
300Mbps |
300 Mbps
2x2 MIMO
802.11n |
600Mbps (300Mbps each radio) |
600Mbps (300Mbps each radio) |
| Radios |
Single radio:
2.4 or 5GHz band |
Dual radios:
2.4 and 5GHz band |
Dual radio, 5-GHz and 2.4-GHz 802.11n 2x2:2 |
Dual radios:
2.4 and 5GHz band |
Dual radios:
2.4 and 5GHz band |
| Operating frequencies |
2.4-2.5 GHz |
2.4-2.5 GHz |
2.4000 GHz to 2.4835 GHz
5.150 to 5.250 GHz
5.250 to 5.350 GHz
5.470 to 5.725 GHz
5.725 to 5.850 GHz |
N/A |
N/A |
| Antennas |
Both models have two internal
omni-directional, dual-band antennas. |
W-AP92: two RP-SMA for W-AP93 two internal omni-directional, dual-band |
Four integrated down-tilt omni-directional antennas for 2x2 MIMO with maximum antenna gain of 3.9 dBi at 2.44 GHz, 4.1 dBi at 5.2 GHz and 4.3 dBi at 5.8 GHz. Built-in antennas are optimized for horizontal ceiling mounted orientation of the IAP. |
W-AP104: four RP-SMA for external 2.4 and 5GHz antennas W-AP105: four internal omni-directional, dual-band |
Four N-type interfaces (two per band) for external 2.4 and 5GHz antennas |
| Network interfaces |
Three RJ45 ports 10/100Base-T Ethernet, Auto-sensing MDI/MDX and one USB port for connecting a cellular modem |
One 100/1000Base-T Ethernet, auto- sensing MDI/MDX |
10/100/1000BASE-T Ethernet network interface (RJ-45); Auto-sensing link speed and MDI/MDX; 802.3az Energy Efficient Ethernet (EEE); PoE-PD: 48 Vdc (nominal) 802.3af PoE or 802.3at PoE+ |
One 100/1000Base-T Ethernet, auto- sensing MDI/MDX |
One 100/1000Base-T Ethernet, auto- sensing MDI/MDX |
| Other interfaces |
Console interface (custom) |
Console interface (RJ45) |
DC power interface, accepts 1.7/4.0-mm center-positive circular plug with 9.5-mm length; Serial console interface (proprietary; optional adapter cable available) |
Console interface (RJ45) |
Console interface (USB) |
| Power over Ethernet (PoE) interfaces |
W-IAP3WN: 802.3af PoE (15.4W) on the E2 port |
48V DC 802.3af-compatible |
Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af or 802.3at-compliant source |
W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE) |
W-AP175P: 802.3at-compatible PoE input (PD)
W-AP175AC and W-AP175DC: 802.3af compatible PoE output (PSE) |
| Power interfaces |
W-IAP3WN: 12V DC, 1.25A
W-IAP3WNP: 48V DC, 0.75A
W-IAP3WN: 100–240V, 0.5A
W-IAP3WNP: 100–240V, 0.75A |
12V DC, 1.25A |
Direct DC source: 12 Vdc nominal, +/- 5% |
48V DC 802.3af-compatible |
12–48V DC or 100–240V AC |
| Power consumption |
W-IAP3WN: 4 watts/6.5 watts
W-IAP3WNP: 5.5, 8, or 26 watts |
10 Watts (maximum) |
Max 9.5W (POE) or 8W (DC) |
12V DC, 1.25A
12.5 Watts (maximum) |
18 Watts (maximum) |
| Environmental Class |
Indoor |
Indoor, plenum-rated |
Indoor |
Indoor, plenum-rated |
Outdoor |
| Operating temperature |
0°C to +40°C
(32°F to 104°F) |
0°C to 50°C
(32°F to 122°F) |
0° C to +40° C
(+32° F to +104° F) |
0°C to 50°C
(32°F to 122°F) |
W-IAP175P: –30°C to +60°C (–22°F to +140°F)
W-IAP175AC and W-IAP175DC:
–40°C to +55°C (–40°F to 131°F) |
