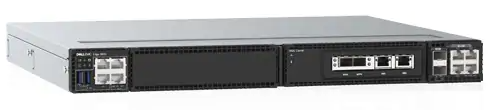

Dell EMC SD-WAN Edge 3000 Series
Modular SD-WAN Solution for VMware SD-WAN



Dell Edge 3000

Dell Products
Dell EMC SD-WAN Edge 3400
8 core Intel Xeon-D 2100 processor, 32GB Memory, 240GB Storage, 6 x 1G and 4 x 10G SFP+ ports
#EDGE-3400
Contact us for pricing!
Dell EMC SD-WAN Edge 3800
16 core Intel Xeon-D 2100 processor, 32GB Memory, 240GB Storage, 6 x 1G and 4 x 10G SFP+ ports
#EDGE-3800
Contact us for pricing!

Click here to jump to more pricing!

Overview:

All-in-one modular simplicity

Dell EMC SD-WAN Edge 3000 is a high-performance SD-WAN appliance validated and pre-loaded with VMware SD-WAN software. This solution improves the customer’s WAN modernization experience by reducing risks and time to deployment, and improving ordering and central point of contact support all with Dell EMC’s world-class global supply chain.

The Dell EMC SD-WAN Solution has three key components:

  • SD-WAN Edge powered by VMware - networking specific, purpose-built appliances designed for high efficiency and reliability integrated with VMware SD-WAN software
  • SD-WAN Orchestrator - cloud-based management and orchestration software services from VMware, managed by Dell EMC
  • SD-WAN Gateways - a global network of more secure, application-focused access gateways from VMware to handle WAN traffic

The Dell EMC SD-WAN Edge 3000 series is a pre-validated solution combining industry leading VMware SD-WAN software and Dell EMC high performance appliances optimized to host SD-WAN. The modular form factor is perfect for the service provider edge or larger enterprise branches, where high-performance, and configuration options are design considerations.


Dell

Maximum efficiency

Maximum efficiency spans capacity and operational efficiency. Capacity efficiency enables the rapid modernization the WAN without disruptive and costly upgrades. The SD-WAN Edge 3000 is designed with headroom to scale when WAN traffic is added. Software subscription options can be upgraded to accommodate changing business requirements for features, duration, and/or bandwidth.

Adapting to change quickly provides operational efficiency:

  • VMware SD-WAN offers dynamic multi-path optimization based on app performance requirements to steer traffic around poor links and networks.
  • The VMware SD-WAN Orchestrator provides centralized enterprise-wide installation, configuration and real-time monitoring in addition to orchestrating the data flow through the cloud network.
  • Available VMware SD-WAN Gateways provide optimized data paths to all applications, branches and datacenters along with the ability to deliver network services from the cloud.

Improving availability furthers operational efficiency by transforming inexpensive broadband links into a secure enterprise-grade, secure SD-WAN improving the performance of existing connections, saving money, and improving scalability and quality of experience.


Specifications:

SD-WAN Edge 3400 SD-WAN Edge 3800
CPU Intel Xeon D-2100, 8 Core Intel Xeon D-2100, 16 Core
Drive 240GB in standard configuration 240GB in standard configuration
RAM 32GB in standard configuration 32GB in standard configuration
Ports (6 x 1G) + (4 x 10G SFP+) (6 x 1G) + (4 x 10G SFP+)
Fan 4 5
Max Recommend Subscription 5 Gbps 10 Gbps
Max throughput (1300 bytes) 7 Gbps 10 Gbps
Average iMix Throughput 2.5 Gbps 5 Gbps
Max Flows per second 38400 38400
Maximum Tunnels 4000 6000
Maximum concurrent flows 3.8M 3.8M
Maximum segments 16 16
Maximum routes 100K 100K

Documentation:

Download the Dell EMC SD-WAN Edge 3000 Datasheet (PDF).
